DESOLDERING TIPS

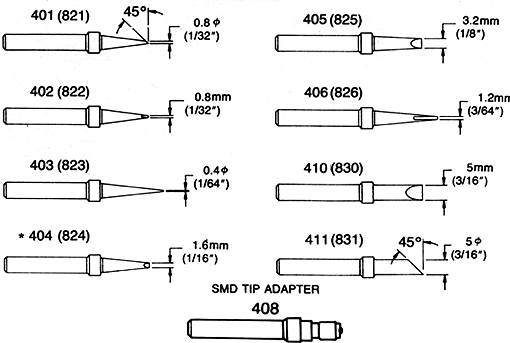

SMD TIPS

FLAT PACK BOX TYPE PART NO. A B C D 46-01008 12.5 9.5 12.5 9.5 46-01007 15.5 12.5 15.5 12.5 46-01006 16.3 13.3 16.3 13.3 46-01005 17.0 14.0 17.0 14.0 46-01004 20.0 17.0 20.0 17.0 46-01003 23.0 20.0 23.0 20.0 46-01002 14.0 9.5 14.0 9.5 46-01001 8.5 6.5 8.5 6.5

FLAT PACK TUNNEL TYPE PART NO. A B 46-020005 6.0 5.0 46-020004 6.0 10.0 46-020003 7.0 12.5 46-020002 9.0 15.2 46-020001 9.0 18.0

CHIP IC REMOVER PART NO. SUF IC PINS A B C D E 46-030001 8 8 1.8 3.6 7.6 12 10 46-030002 16 16 1.8 3.6 7.6 12 20 46-030003 18 18 1.8 3.6 7.6 12 22 46-030004 24 24 1.8 6.4 10.2 15 29

FLAT PACK SOLDERING TIP PART NO. A 46-040002 10 46-040001 5.5

CHIP PARTS REMOVER PART NO. A B C 46-050008 3.2 1.6 6.4 46-050007 2.1 1.5 5.3 46-050006 3.6 2.5 6.8 46-050005 3.6 3.0 6.8 46-050004 4.6 3.2 7.8 46-050003 4.6 2.6 7.8 46-050002 3.8 1.9 7.0 46-050001 2.0 2.9 5.2
