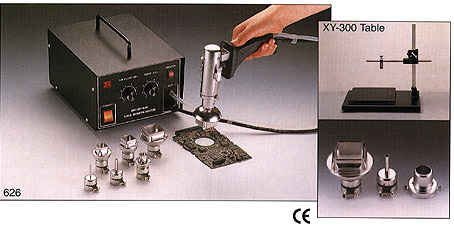

HOT AIR 626
SMD REWORK SYSTEM



XYTRONIC's unique hot air rework system offers the technology to
address your most complicated SMD rework requirements!

FEATURES:
  • INTERNAL PUMP:
    Incorporates a quiet running, maintenance free pump.

  • CERAMIC ELEMENT:
    Long-life ceramic heater insures accurate and sufficient heat where you need it.
    A long-life ceramic heater insures accurate and sufficient heat where you need it.

  • TEMPERATURE CONTROL:
    Adjustable to allow for fine tuning the temperature.

  • NOZZLES:
    Unique design for PLCC's.

  • AIR FLOW:
    Adjustable via control knob on the front of the unit.

  • FOCUS HOODS:
    A wide range of hoods are available to meet all your applications.
    Easily to change design.

  • ECONOMICAL:
    the same nozzle is used for both desoldering and soldering.

SPECIFICATIONS
Model No. 626
Power Consumption 300 watts
Power Supply AC115V/60Hz. or AC230V/50Hz.
Temperature Range 150-450°C (300-842°F)
Air Flow 4.2L/min ~ 42.4L/min. (5.0L/min. ~ 39.6L/min. @230V)
Outside Dimension 195 x 235 x 125 mm (W x D x H)
Weight 4.9 Kg. (10.78 lb.)
